BUTTERFLY VALVES

Inoxpa Butterfly Valves

Inoxpa manufactures valves specifically for use in the Food-processing, Dairy, Pharma & Cosmetics and Wine-making sectors.

The Inoxpa butterfly valve can be operated automatically through an actuator or manually with a handle. The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions.

The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.

 Download Technical Brochure

Sandwich Butterfly Valve

Easy to install or remove without separating the pipes.

The butterfly valve can be operated automatically through an actuator or manually with a handle.
The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.

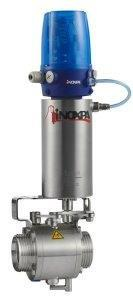

Double Butterfly Valve

Double butterfly valves can be used in most liquid product applications in the food-processing, pharmaceutical and chemical industries.

The LBV (Leakage Butterfly Valve) valve offers an easy and safe separation of products and prevents accidental mixing in case of gasket failure.

The usual applications are the ones that require safe separation of the product and CIP solutions in a single point (not in manifolds), or at the end of a manifold (e.g. CIP return) or entry of a CIP solution into a tank (through a spray ball).

Stainless steel multiposition handle

Apart from its attractive and robust design, the stainless steel handle offers a longer service life.

Its excellent resistance to aggressive environments, wear and direct sunlight makes it suitable for either indoor or outdoor use.

The butterfly valve can be operated automatically with an actuator or manually with a handle.

The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions.

The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.

Other options for the butterfly valve are multiposition handle, mini multiposition handle, 4-position handle, 2-position handle, lockable handle, micrometric handle, pneumatic actuator.
